Charts and Graphs in Docma

Docma supports the Vega-Lite declarative syntax for specifying charts / graphs. Vega-Lite specifies a mapping between source data and visual representations of the data.

To make all this work in docma requires three things:

  1. A means to tell docma that a chart needs to be generated. This is done using a special URL format within <IMG> tags in the source HTML. See Charts in HTML Content.

  2. A means to specify the design of the chart. This is done with a chart specification file within the document template.

  3. A means to feed data to the chart creation process. See Source Data for Charts.

Charts in HTML Content

Docma provides a URL based mechanism to trigger creation of charts during the process of converting input HTML to a PDF or HTML output document. See Dynamic Content Generation for more details.

It looks like this:

<IMG src="docma:vega?spec=charts/my-chart.yaml&data=...">

In a nutshell, when docma sees a URL in this form, it knows to get data from the source specified by the data parameter and feed it into the chart generator with the Vega-Lite specification indicated by the spec parameter:

Normal CSS styling can also be applied:

<IMG style="width: 5cm;"
    src="docma:vega?spec=charts/my-chart.yaml&data=...">

Here is a more complete example, showing how Jinja can help build the src URL structure safely:

<IMG style="width: 10cm;" src=docma:vega?{{
  (
    ( 'spec', 'charts/my-chart.yaml' ),
    ( 'data', 'file;data/my-data.csv' ),
    ( 'params', { 'extra_rendering_param': 1234 } | tojson)
  ) | urlencode
}}">

See also docma scheme parameters for vega charts.

Chart Specification Files

The chart specification is a file in the document template containing a Vega-Lite chart definition.

The chart specification will be Jinja rendered prior to use.

The chart specification can be in either JSON or YAML format. Docma doesn't care which. There are pros and cons with each format. YAML is easier to write and to read but JSON is the native format of the examples in the Vega-Lite sample gallery or the Vega-Lite on-line editor. You're going to want to use both of these resources.

The chart specification file should still have a .yaml suffix, even if the contents are JSON. This all works because valid JSON is also valid YAML.

Note

Docma uses the Vega-Altair Python package to process Vega-Lite specifications.

Source Data for Charts

The value of the data parameter in a docma:vega?... URL is a docma data source specification that indicates where to obtain the data and where to attach it to the chart specification.

The data parameter can be used multiple times if there are multiple data sources in the chart.

If the data parameter is not specified, the source data is assumed to be contained within the chart specification itself. This can actually be useful when designing a chart to avoid the need to wrangle external data when experimenting.

See Data Sources in Docma for more information.

Tips and Suggestions for Designing Charts

The Vega-Lite website has lots of resources to help with designing charts. This section just provides a few tips and suggestions.

Some suggestions for simplifying the development:

  • Where possible, start with a chart from the Vega-Lite sample gallery and play with it in the on-line editor to get close to what you are after.

  • Include a small sample data set in the chart specification to allow experimentation. The sample data can be left in the specification when included into a docma document template. Docma will replace it at run-time.

  • Charts reference a JSON schema: $schema: https://vega.github.io/schema/vega-lite/v5.json. PyCharm will interpret this and provide some auto completion and validation as you go.

  • Believe it, or not, but ChatGPT is surprisingly helpful with Vega-Lite. It can often give meaningful answers to enquiries like these:

    • Explain this Vega-Lite specification to me ... (paste the JSON in)

    • I have this Vega-Lite specification. How do I remove the axes and change the colour on the bars?

    • Design a Vega-Lite chart that shows a heat map of ... with ... on the x axis and ... on the y axis

  • ChatGPT can get confused with obscure concepts (like interval meter data). You can often replace this with more generic data in the questions (temperature data is a good substitute for interval data).

  • Layers are quite an important concept in Vega-Lite. Make an effort to understand them.

Samples

With a bit of effort, Vega-Lite does a surprisingly good job of generating good looking charts with a small amount of specification.

Here are a few examples.

Bar Chart

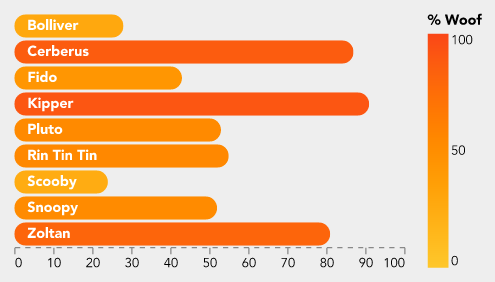

This is a bar chart of dog woof-power.

This is the specification file (with truncated data).

$schema: 'https://vega.github.io/schema/vega-lite/v5.json'
width: 300
config:
  font: Avenir
  background: '#eeeeee'
  padding: 10
  view:
    stroke: transparent
  axisX:
    grid: false
    gridWidth: 0.5
    domainDash:
      - 4
      - 4
    formatType: number
  axisY:
    grid: false
data:
  values:
    - Dog: Bolliver
      Woof: 28
view:
  fill: '#eeeeee'
encoding:
  'y':
    field: Dog
    title: Dog
    type: ordinal
    axis: null
layer:
  - mark:
      type: bar
      cornerRadius: 20
    encoding:
      x:
        field: Woof
        title: null
        type: quantitative
      color:
        field: Woof
        type: quantitative
        title: '% Woof'
        scale:
          domain: [ 0, 100 ]
          range: [ '#fec72b', '#fa4617' ]
  - mark:
      type: text
      align: left
      x: 10
      color: white
      fontWeight: bold
    encoding:
      text:
        field: Dog
Heat Map

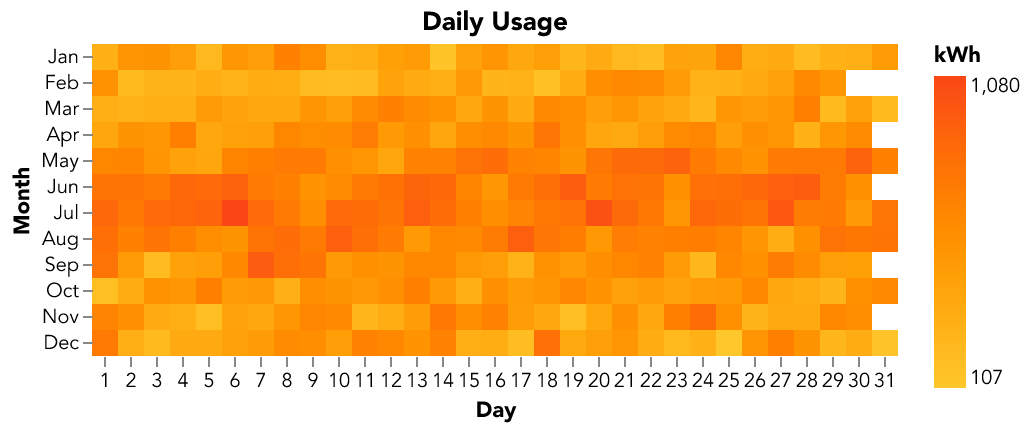

This heat map shows electricity interval meter data.

$schema: 'https://vega.github.io/schema/vega-lite/v5.json'
title: 'Daily Usage'
config:
  font: Avenir
  view:
    continuousWidth: 300
    continuousHeight: 300
    step: 13
    strokeWidth: 0
  axis:
    domain: false
data:
  name: usage_by_day

mark:
  type: rect
encoding:
  color:
    aggregate: max
    field: kwh
    legend:
      title: kWh
    type: quantitative
    scale:
      range: [ '#fec72b', '#fa4617' ]
  x:
    axis:
      format: '%e'
      labelAngle: 0
    field: date
    timeUnit: date
    title: Day
    type: ordinal
  y:
    field: date
    timeUnit: month
    title: Month
    type: ordinal
datasets:
  # Sample data -- this gets replaced
  usage_by_day:
    - date: 2023-07-01
      kwh: 1234
