How it Works¶

Slacker has a minimal AWS footprint, consisting of a Python-based AWS Lambda function and two small DynamoDB tables. It includes a CLI to test, validate and manage configuration data held in the DynamoDB tables.

Slacker uses Slack's incoming webhooks custom integration mechanism to send messages.

Note

Token based webhooks are a legacy integration method but they work just fine.

The architecture is simple:

Slacker architecture

Notes

The slacker Lambda does not need to run within a VPC.
EventBridge can send messages to slacker, either directly or via SNS.

The Sending Process¶

The sending process is:

Message Publishing

A message is published by the originating AWS source (e.g. SNS) to the slacker Lambda function.
Slack Webhook Lookup

Slacker looks up the source ID (e.g. SNS topic ARN) in the DynamoDB webhooks table and obtains the URL of the Slack webhook and some other control information. If the source ID is not found in the webhooks table, the wildcard webhook is used, if present.
Rules Processing

Slacker processes the message against any rules specified in the webhooks table to decide if the message should be discarded, diverted, or modified prior to sending.
Message Sending

Slacker uses the webhook URL to send the message to Slack.

The Webhooks Table¶

The webhooks table is a DynamoDB table named slacker.webhooks. It maps AWS message source IDs to Slack webhook URLs. All sources feeding messages to slacker must have an entry in the table.

Note

The name of the table made more sense when slacker was young. Stuck with it now.

The table must be created with sourceId as the primary partition key. The table is created as part of a standard installation.

The table contains the following fields.

Name	Required	Type	Description
#...	No	Any	Any field with a name starting with `#` is treated as a comment and ignored by slacker.
account	Note 1	String	The AWS account ID into which the webhook is deployed.
channel	Note 2	String	An alias for a Slack webhook URL that will be looked up in the channels table. This can be overridden in individual message rules to redirect a message.
colour	No	String	Slack messages will have a colour bar displayed down the left margin specified by the value of this field. This can be any hex colour code (prefixed with `#`), or one of the Slack special values `good`, `warning`, or `danger`. The default value is a light grey `#bbbbbb` unless overridden by the `SLACKER_COLOUR` environment variable.
enabled	No	boolean	If `false`, sending from this source to Slack is disabled. Default is `true`.
preamble	No	String	A fixed text preamble for all messages. The most useful values are things such as `<!here>` and `<!channel>` which will cause Slack to insert `@here` and `@channel` alert tags respectively.
rules	No	List	A list of rules that can control whether a message is sent, or not, and the content of the message. See Message Rules.
sourceId	Yes	String	The source ID for the AWS message source. See Message Sources below.
url	Note 2	String	The full URL of the Slack webhook. Deprecated. Use `channel` instead.
x-*	No	Any	Any field with a name starting with `x-` / `X-` is ignored. These can be used for metadata for things such as CI/CD tools.

Notes

The account field is not used by the slacker Lambda function. It is used by the slacker CLI to ensure that webhook entries are not accidentally deployed into the wrong account.
One of channel (preferred) and url must be specified.
Slacker caches webhook entries for 5 minutes. Table updates can take this amount of time to become effective. The duration can be changed by setting the SLACKER_CACHE_TTL environment variable.
color is accepted as an alternative to colour. Don't get me started.

Tip

A JSON schema definition is available for webhooks table entries. Some IDEs (e.g. the JetBrains suite) will use the schema definition to provide auto-completion, dynamic validation etc.

To use it, include the following element in entries:

YAMLJSON

$schema: https://jin-gizmo.github.io/slacker/schemas/latest/webhook.schema.yaml
sourceID: ...

Replace latest with vN (e.g. v2) to get a versioned schema.

{
    "$schema": "https://jin-gizmo.github.io/slacker/schemas/latest/webhook.schema.json",
    "sourceId": "..."
}

Replace latest with vN (e.g. v2) to get a versioned schema.

Note that the slacker CLI will add the $schema entry when downloading from DynamoDB and strip it when deploying to DynamoDB.

The Channels Table¶

The channels table is a DynamoDB table called slacker.channels. It provides an arbitrary alias for Slack webhooks. The channel field in a webhooks table entry is used to obtain the actual Slack webhook URL from the channels table.

The channel can be the Slack channel name corresponding to a given webhook, but it does not have to be. An alternative scheme could, for example, use functional labels such as priority-1-alerts as the channel alias. Slack itself only ever knows about the webhook URL.

The channels table contains the following fields.

Name	Required	Type	Description
#...	No	Any	Any field with a name starting with `#` is treated as a comment and ignored by slacker.
channel	Yes	String	An alias for a Slack webhook URL. This can be referenced in the webhooks table.
url	Yes	String	The full URL of the Slack webhook.
x-*	No	Any	Any field with a name starting with `x-` / `X-` is ignored. These can be used for metadata for things such as CI/CD tools.

Note

Slacker caches channel entries for 5 minutes. Table updates can take this amount of time to become effective. The duration can be changed by setting the SLACKER_CACHE_TTL environment variable.

Tip

A JSON schema definition is also available for channels table entries. although the entries are so simple that it's hardly worth the bother.

For what it's worth, to use it, include the following element in entries:

YAMLJSON

$schema: https://jin-gizmo.github.io/slacker/schemas/latest/channel.schema.yaml
channel: ...

Replace latest with vN (e.g. v2) to get a versioned schema.

{
    "$schema": "https://jin-gizmo.github.io/slacker/schemas/latest/channel.schema.json",
    "channel": "..."
}

Replace latest with vN (e.g. v2) to get a versioned schema.

Message Sources¶

Message Rules¶

A webhooks table entry may contain a rules key that can filter and reformat messages.

If there is no rules key, messages are sent to Slack, unfiltered and unmodified.

If present, the rules key contains a list of individual rules that are processed in order. The first matching rule decides the treatment of the message and the subsequent rules are ignored. If no rules match a message, the message is sent to Slack unmodified.

Tip

Slacker's fallback position is to always deliver the message to Slack unless a correctly operating rule directs some other action. This means that errors in rules are generally not serious. It also means that rule sets can start out simple (or empty!) and be augmented over time.

Messages sent to slacker from AWS related events are of two kinds.

Object messages: These are JSON encoded objects. Slacker will decode the JSON into an object when processing the rules. The attributes of the object are then available for use in Jinja rendered constructs for message filtering and reformatting.
Text messages: These are arbitrary text messages. Slacker can optionally apply a Python regex containing capture groups to these messages to extract named or positional attributes for use in Jinja rendered constructs for message filtering and reformatting.

Each rule is an object (dictionary) that may contain the following keys:

Key	Description
#...	Any field with a name starting with `#` is treated as a comment and ignored by slacker.
action	The action to take if the rule selects the message. Possible values are `drop` (discard the message) and `send`. The default is `send`.
channel	If the rule selects the message, override the channel to which the message is sent.
colour	If the rule selects the message, override the default colour for the Slack sidebar. `color` is also accepted.
if	A Jinja template that is rendered using the attributes from an object message or the regex capture groups matched from a text message to produce a truthy value. If the truthy value is true, the rule applies to the message, otherwise the rule is skipped.
match	A regex that will be applied to text messages using Python's `re.search()`. If the message is an object message, or does not match the regex, the rule is skipped. The results of the match are made available as Jinja rendering variables for use in `if` and `template` generation. See Regular Expressions in Rules.
preamble	If the rule selects the message, override the default preamble for the Slack message.
template	A Jinja template used to generate the actual message to be sent to Slack. This is rendered with the attributes from an object message or the regex capture groups matched from a text message. If the rendering process fails for any reason (e.g. malformed Jinja), the rule is skipped. If not specified, the original incoming message text is used as the message content.

Tip

Rules can be tested locally using the slacker CLI.

The rule processing flow is shown below:

Rule Processing Flow

Jinja Rendering¶

These components of the message rules are Jinja rendered:

if predicates used to determine whether or not the rule applies.
template specifications used to generate the content of the Slack message.

Slacker makes the following rendering parameters available:

Parameter	Description
aws	A dictionary of AWS related helper utilities as follows...
aws.account_id	The AWS account ID.
aws.account_name	The AWS account alias, if the account has one, otherwise the AWS account ID. This can be overridden by setting the `AWS_ACCOUNT_NAME` environment variable on the slacker Lambda.
aws.Arn	A class that takes an ARN and makes the individual components available as the following attributes: `partition`, `service`, `region`, `account`, `resource`. e.g. `{{ aws.Arn("arn:aws:sns:us-east-1:123456789012:xyzzy").region }}` is `us-east-1`.
aws.region	The AWS region name (e.g. `us-east-1`).
data	Object containing attributes extracted from the source message by a `match` regex applied to a text message or the decoded content of an object message.
datetime	The Python `datetime.datetime` module.
date	The Python `datetime.date` module.
link()	A function that takes a URL and optional text argument and generates Slack compatible hyperlink syntax. e.g. `link('https://example.com')` or `link('https://example.com', 'Visit example.com')`
msg	An object containing attributes associated with the incoming message as follows...
msg.slacker_id	A unique identifier for the message that can be used to find the full original message contents. See Logging.
msg.source_id	The webhook sourceId.
msg.source_name	The webhook source name. If set, this is generally a slightly more human friendly version of the sourceId.
msg.subject	The message subject, if any.
msg.text	The original message text.
msg.timestamp	An epoch timestamp for the message.
now()	A function that takes an optional timezone name (default `UTC`) and returns a timezone aware Python datetime object. e.g. `now()` or `now('Australia/Melbourne')`.
re	The Python `re` (regex) module.
current_time()	A function that takes an optional timezone name (default `UTC`) and returns the current time as a string of the form `HH:MM:SS`. e.g. `current_time('UTC')` or `current_time('Australia/Melbourne')`.
tz	The python `ZoneInfo` module. e.g. `tz('Australia/Melbourne')`, `tz('UTC')`.

Regular Expressions in Rules¶

Message rules may contain a match key that specifies a Python style regular expression (regex) that will be applied to text messages. If the regex matches, the rule is selected (subject to any if condition).

Info

Python's re.search() is used. i.e. Matches are not anchored to the beginning of the string by default.

Regexes are not applied to object messages.

The regex may contain either named, or unnamed capture groups, but not both. Named groups are much safer for anything other than the simplest of patterns.

The results of the match are made available to the Jinja rendering process as the data object.

If the regex contains named groups using the (?P<name>...) syntax, the data object passed to the Jinja rendering process is a dictionary containing all the named subgroups of the match, keyed by the subgroup name.

If the regex contains only unnamed groups, the data object passed to the Jinja rendering process is a tuple containing all the subgroups of the match.

If the regex does not contain any groups, the data object passed to the Jinja rendering process is a string containing the matched string.

The Wildcard Webhook¶

The wildcard webhook is a webhooks table entry with a sourceId of *.

It has two roles:

Webhook of last resort: If an incoming message has a source ID that doesn't match any entry in the webhooks table, the wildcard webhook is used to process the message.

Without a wildcard webhook, the message would otherwise be dropped.
Container for common webhook rules: Any rules in the wildcard webhook are implicitly appended to the rules of all other webhooks.

This provides a single location for common rules that would otherwise need to be repeated in individual webhooks. Only the rules component of the wildcard webhook is used in this instance. Other fields are ignored.

Notes

The wildcard webhook is optional. If there is no wildcard webhook, incoming messages with an unmatched source ID will be dropped.
To prevent a specific webhook from implicitly falling through to the wildcard webhook rules, add an unqualified send (or drop) rule to the end of the former's rule list.

Tip

A sample set of rules for the wildcard webhook is provided in the rule library.

Message Logging¶

If slacker is configured to log messages in CloudWatch, entries like this are written to log group /aws/lambda/slacker:

{
  "message": "...",
  "slackerId": "AAECPR9qbwTqaD3o",
  "sourceId": "arn:aws:sns:us-east-1:...",
  "sourceName": "SNS:...",
  "subject": "Whatever",
  "timestamp": 1749106337.055,
  "type": "incoming"
}

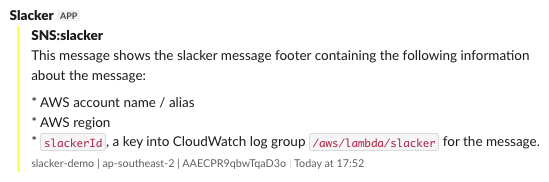

On rare occasions, it is helpful to be able to see the original message detail. This is easy to do using the details from the message footer in Slack, as shown below.

The footer contains:

AWS account name / alias (slacker-demo in this example)
AWS region (ap-southeast-2)
slackerId, (AAECPR9qbwTqaD3o) a key into the CloudWatch log group /aws/lambda/slacker for the message.

The first two indicate where to find the /aws/lambda/slacker log group. The slackerId will locate the original message within that log group using the following search syntax in the CloudWatch logs console:

{ $.slackerId="AAECPR9qbwTqaD3o" }

Alternatively, the following CloudWatch Logs Insights query can be used:

fields @timestamp, @message
| filter slackerId="AAECPR9qbwTqaD3o"

Time Based Rules¶

Slacker can effectively enable or disable message rules at specific times of day, or days of the week, by combining the if attribute of a message rule with the various date / time functions provided as part of the Jinja rendering process.

Time based rules can also be used to alter the way in which messages are handled at different times. For example, messages can be diverted to a different Slack channel it different times of day by adding a time based condition and an override channel to specific rules.

For example, the following rules would cause messages to be dropped outside of business hours in Sydney.

rules:
  - '#': Drop all object messages outside business hours
    if: >-
      {{
        now("Australia/Sydney").weekday() > 4
        or
        not "08:00:00" <= current_time("Australia/Sydney") <= "18:00:00"
      }}
    action: drop
  - '#': Drop all text messages outside business hours
    match: '.'
    if: >-
      {{
        now("Australia/Sydney").weekday() > 4
        or
        not "08:00:00" <= current_time("Australia/Sydney") <= "18:00:00"
      }}
    action: drop

Note that the if element is only evaluated for object messages. The first of the rules above handles messages that arrive at slacker as JSON blobs. These are automatically converted to object messages by slacker.

For text messages, we must force slacker to convert these to an object message by specifying a match element. The second rule contains a trivial regex that will match all text messages. See Regular Expressions in Rules for more information.

Source	Value of `sourceId`
CloudWatch Logs	`logs:` followed by the log group name (e.g. `logs:/var/log/messages`).
SNS	SNS topic ARN.
Amazon EventBridge (via SNS)	SNS topic ARN.
Amazon EventBridge (direct, no input transform)	`events:` followed by the `source` field from the event message (e.g. `events:aws.rds`)
Amazon EventBridge (direct, with input transform)	Value of the `SlackerSourceId` field in the constructed message.
Direct Invocation	Value of the `SlackerSourceId` field in the input message.
